Mini Industrial PC, Fanless Desktop Computer with i5-8250U, Dual Display, 2xCOM RS232, WiFi, Windows 10 Pro
Mini Industrial PC, Fanless Desktop Computer with i5-8250U, Dual Display, 2xCOM RS232, WiFi, Windows 10 Pro
Couldn't load pickup availability
- ✔️Industrial Computer: Equipped with Core i5-8250U, 4 Cores, 8 Threads, Base 1.6GHz，Max 3.4GHz. Preinstalled with Windows 10 Pro, support Linux system. This mini PC can be used with a variety of devices such as projectors, printer, PLC programmer, barcode gun. Applied in office, parking lot, school, supermarket, factory, Lab, hotel front desk and vehicle.
- ✔️Rich I/O Interfaces: 4xUSB3.0, 3xUSB 2.0, 1xVGA, 1xHDMI, 1xLAN, 2x RS232 COM, 1x Audio input/output. Simply connect the VGA and HDMI video outputs at the same time, you can enjoy the simultaneous display of dual screen, meeting your daily needs. You can install the external Wi-Fi antennas to boost the signal.

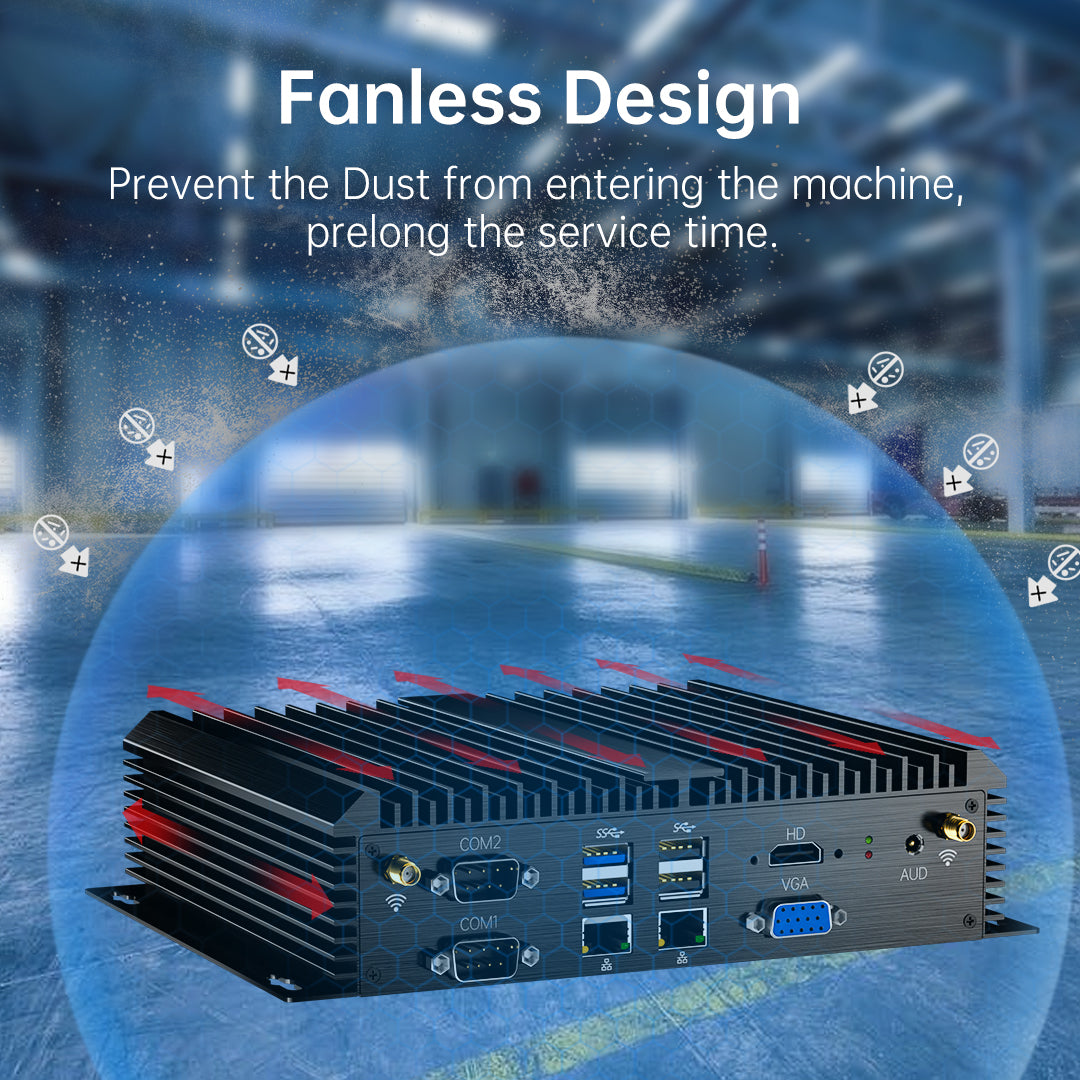

- ✔️Fanless Design: This mini computer adopts a fanless and metal case design. A metal case helps your computer dissipate heat efficiently. It saves electricity bills and eliminates noise. The most important thing is to prevent dust from entering the inside of the machine and prolong the life of the computer.

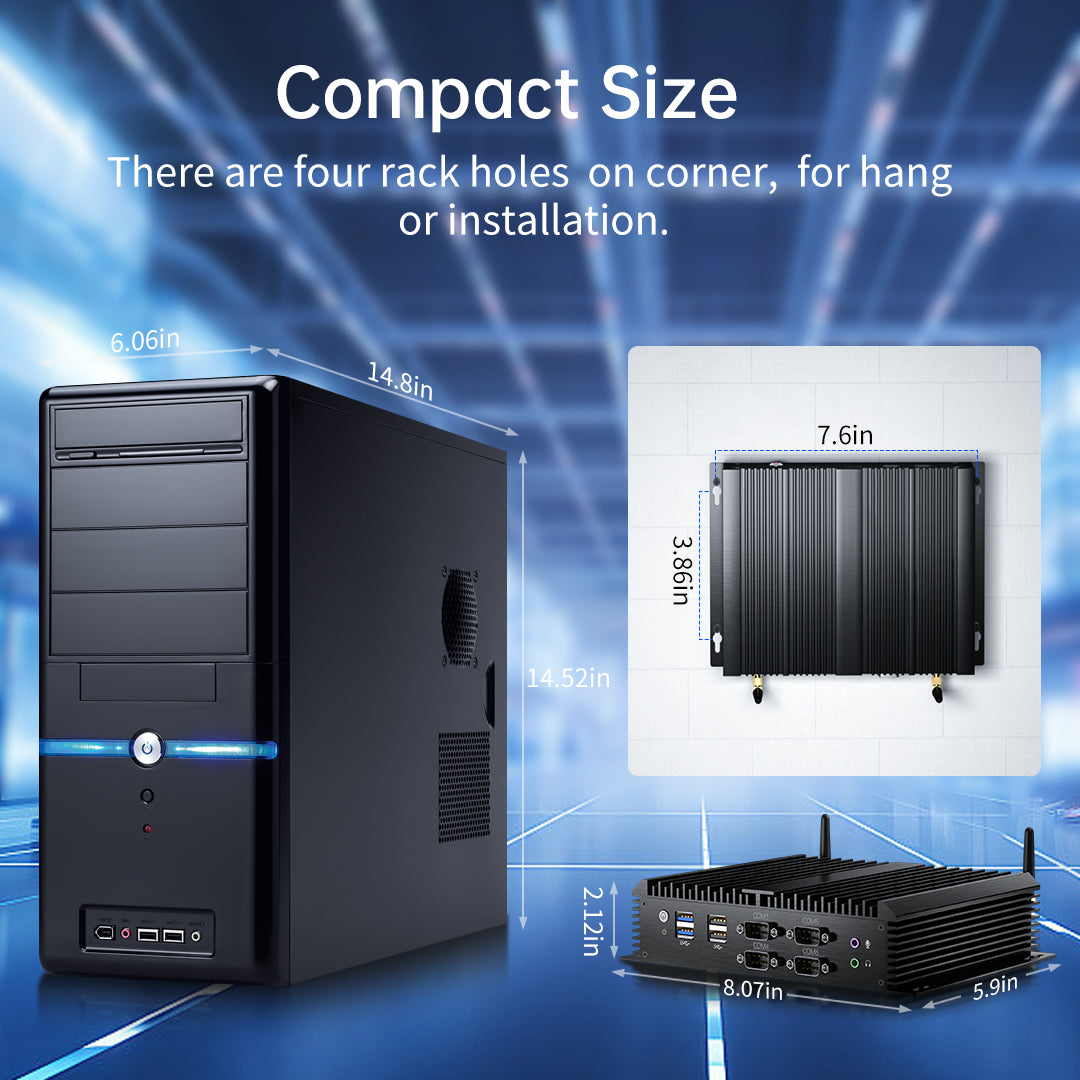

- ✔️Small and Portable: The product size is only 9.25*5.91*2.13inch. It can be used in some particular industrial environment which only allow micro PC. And this industrial PC has rack holes. These can help you install the computer easily as you want.
- ✔️Two Years Quality Warranty: Two years hardware warranty and lifetime technical support after purchase. We will ship the package via DHL/UPS/FedEx. On mostly reigon, you could receive the package in about one week. Any questions, please feel free to contact us via the email: support_msecore@163.com
SYSTEM
- Processor: Core i5-8250U, 4 Cores, 8 Threads, Base 1.6GHz, Max Turbo 3.4GHz.
- Memory: Dual RAM slots. The computer coming with i5-8250U uses DDR4 RAM
- STORAGE: 1x 2.5inch SATA HDD/SSD, 1x mSATA SSD, 1x M2 2280 SSD
- POWER SUPPLY: DC in 12V
VIDEO
- Integrated Graphics: UHD Graphics 620(i5-8250U)
- HDMI: 1x HDMI
- VGA Port: 1x VGA Port
- Multi-Display Support: Y
I/O
- Ethernet: 1x GbE
- USB: 3x USB 2.0; 4x USB 3.0
- Serial: 2x RS-232 COM
- Audio: 1x Out
MECHANICAL
- Dimensions: 9.06″ x 5.91″ x 1.97″(230mm x 150mm x 50mm)
- Weight: 2.9lbs(1.3kg)
- Mounting: Wall, compatible with VESA
OPERATING SYSTEM
- OS Support: Windows 10 Pro, Linux
 |
 |
Reliable, stand the test of timeThe box of this mini PC is made of close aluminum alloy. It can protect internal components from the damage of demanding environments, such as liquids and dust, extreme temperatures, and high shock and vibration. Heat sink in its surface increases the area in contact with air, which help the machine dissipate heat more efficiently. Compared with personal computer, industrial PC is more reliability and scalability, |
|
|
 |
|
|
Wake on LanThis industrial computer supports "Wake on Lan" and it is available to auto-start when it be energized. You can set it according to your needs. "Wake on Lan" means you could wake this machine from the internet. It is convenient for engineers to discover, repair on remote. |
